BridgeX

  • Serves up to 4 remote connections
  • Powered through PoE (802.3af-2003 Standard) or separate 12v DC power supply (not included)

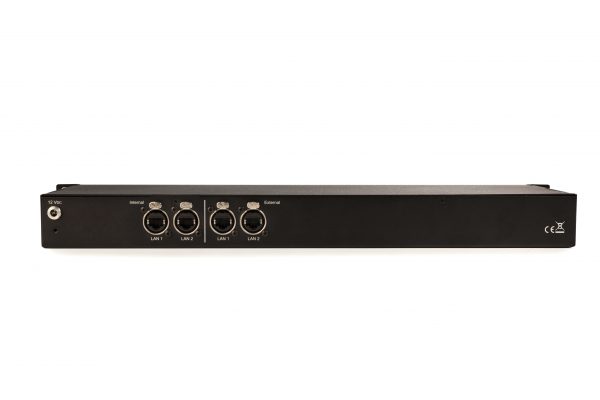

  • 4x EtherCon LAN port (2x internal, 2x external)
  • iOS app to connect iPhone or iPad to the Green-GO network

The BridgeX can also be configured to enable remote users. A Green-GO device in a remote location can connect to a LAN port of the BridgeX through the internet – when set to Remote Connection mode – and simply becomes another user in the system.

There is also an iOS app available which transforms your iOS device into a beltpack. Instead of connecting to a remote Green-GO network, you can also connect to the iOS device.

The Green-GO BridgeX is a quad network bridge interface, intended to connect remote locations to a Green-GO network. This can be done in two separate modes; ‘Bridge’ mode or ‘Remote User’ mode. In both modes, the Green-GO BridgeX can support four connections.
In ‘Bridge’ mode, the BridgeX will connect two Green-GO networks together through a separate network or the internet. The audio (and optionally call) signals will be transported from one Green-GO network to the other. This setup will create one group that is spread over two sites. The group ID and name of these two sites do not need to match.
